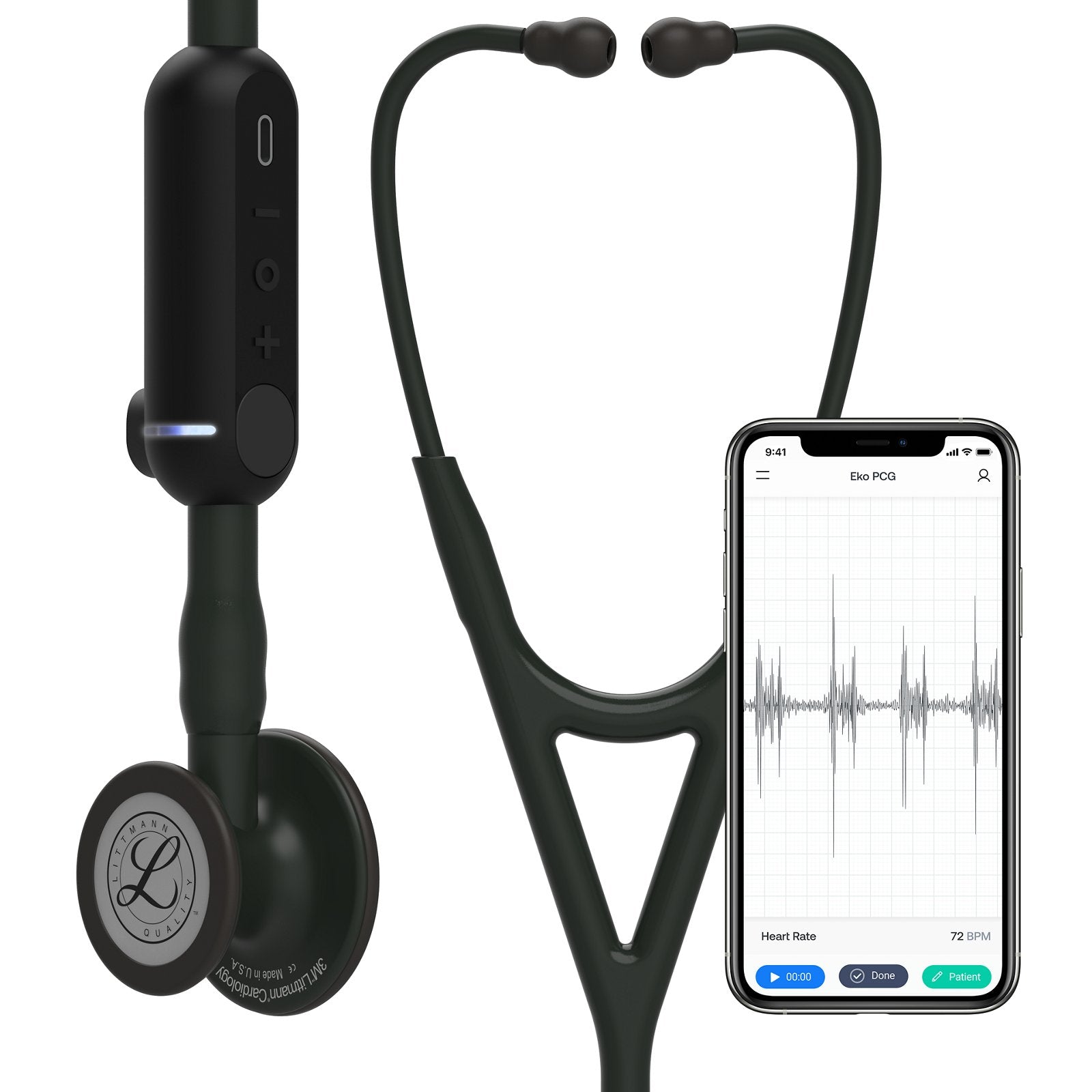

What is the Littmann CORE Digital?

The Littmann CORE Digital is a cardiology-level digital stethoscope that combines the mechanical base of the classic Cardiology IV with an electronic module attached to the chestpiece. This module adds up to 40x sound amplification at peak frequency, active noise cancellation, and Bluetooth connectivity with the Eko app for visualizing and analyzing auscultated sounds.

Unlike other electronic stethoscopes on the market, the CORE Digital maintains its mechanical analog function even when the digital module is off or the battery is dead. This means the clinician never loses the basic auscultation tool: if the battery runs out in the middle of a shift, the instrument continues to function as a conventional Cardiology IV.

The product is manufactured by Littmann (a Solventum brand, formerly 3M Health Care) and is designed for physicians, residents, nurses, and other healthcare professionals who perform cardiac and pulmonary auscultation in high-demand clinical environments.

How does 40x amplification work?

The 40x amplification on the Littmann CORE Digital means that, at peak frequency, body sounds reach the examiner's ear with an intensity up to 40 times greater than in passive analog mode. This gain is adjustable in 7 increments using the digital module's side volume buttons, allowing for intensity calibration according to the environment and clinical need.

The technology is especially useful for detecting low-intensity murmurs, subtle lung sounds in obese patients or those with thick chests, and for professionals working in noisy environments such as emergency rooms, ICUs, or operating theaters. To activate amplified mode, simply press the on/off button on the chestpiece module. The LED light flashes white, indicating that the device is active and ready to pair with the app.

Active Noise Cancellation: How does it work in practice?

The Littmann CORE Digital's active noise cancellation (ANC) analyzes ambient sounds in real time and electronically attenuates them before they reach the professional's ear canal. The feature must be activated manually through the Eko app, in the CORE settings menu, as the default setting is off.

In clinical practice, ANC is most relevant in scenarios with high noise pollution: emergency shifts, ICU beds with monitor alarms, busy corridors, and pre-op rooms. The technology does not completely eliminate ambient noise, but it significantly reduces interference, making cardiac and pulmonary sounds clearer for the examiner. Turning off the digital module also automatically deactivates noise cancellation.

Auscultation Modes: Tunable diaphragm and pediatric use

The Littmann CORE Digital features two pressure-tunable diaphragms: an adult and a pediatric one, eliminating the need to reposition or flip the chestpiece during examination. This tunable diaphragm technology was developed by 3M Health Care itself and allows for the capture of low (light pressure) and high (firm pressure) frequencies with the same side of the chestpiece, simply by varying the force applied to the patient.

To switch between the adult and pediatric sides, simply rotate the chestpiece and index the desired side, which automatically closes the other side and prevents sound from entering through it. This configuration reduces noise artifacts and improves auscultation quality in children without the need to change stethoscopes.

In the Eko app, additional frequency filters can be selected: Wide (standard), Cardiac (emphasizes low frequencies, ideal for heart sounds), and Pulmonary (emphasizes high frequencies, useful for respiratory sounds). The filter selection is saved between sessions.

Bluetooth Connectivity and Eko App Integration

The Littmann CORE Digital connects via Bluetooth to smartphones and tablets to transmit sounds in real-time to the Eko app, which allows for waveform visualization, recording, and analysis of auscultations. Bluetooth connectivity is not required for amplification to work: the amplified digital mode operates normally through the stethoscope's earpieces even without pairing with the app.

The Eko app is available for iOS (version 15 or higher) and Android, and also offers versions in English, Japanese, Spanish, German, French, Portuguese, and Italian. To create, save, and share multiple recordings, an Eko+ subscription is required, which is paid and sold separately by Eko Health.

Device status is indicated by the module's LED light: flashing white means active and awaiting pairing; solid white confirms it is paired to the app; yellow indicates charging in progress; flashing yellow signals low battery; and green indicates a full charge. Important: the module does not work while connected to the charger.

Artificial intelligence for heart murmur detection

The Littmann CORE Digital, integrated with the Eko app and an Eko+ subscription, offers AI analysis capable of signaling the presence of potential heart murmurs, bradycardia, and tachycardia based on auscultated sounds. This feature is called Eko AI and uses machine learning algorithms developed and validated by Eko Health.

It is important to note that the results generated by Eko AI are clinical decision support tools, not autonomous diagnoses. The system flags suspicious findings for the professional to evaluate more closely, accelerating screening without replacing medical judgment. FDA approval (the American regulatory agency) applies to use in the United States; local regulations may vary in other countries, including Brazil.

Who is the Littmann CORE Digital recommended for?

The Littmann CORE Digital is especially recommended for cardiologists, pulmonologists, intensivists, emergency physicians, and any professional who performs high-demand auscultation in noisy environments or with difficult-to-auscultate patients.

Technical Specifications of the Littmann CORE Digital

The Littmann CORE Digital measures 69 cm from the chestpiece to the earpieces and weighs 232 grams, dimensions similar to the conventional Cardiology IV, despite the attached electronic module.

• Amplification

  Up to 40x at peak frequency compared to analog mode, adjustable in 7 volume increments via the module's side buttons.
• Battery and Charging

  8 hours of continuous digital use with Bluetooth active; full charge in 2.5 hours via included micro-USB cable. 5-minute standby mode without use to preserve charge.
• Connectivity

  Bluetooth with iOS 15+ and Android smartphones and tablets. Compatible with the Eko app (available in Portuguese). Does not connect directly to Bluetooth headphones: wireless audio is transmitted via the app.
• Materials and Safety

  No natural latex or phthalate plasticizers in the tubing. Weight 232g, length 69cm. Not to be used in an MRI environment due to metallic components.
• Warranty

  2-year warranty (less than the 3 years of the analog Cardiology IV, due to the complexity of the electronic components).
• Available Finishes

  Four options: matte black chest piece, polished mirror chest piece, polished copper chest piece, and polished rainbow chest piece. Allows for personalization by laser engraving (scratching not recommended as it generates frictional noise).
• Cleaning and Maintenance

  External surfaces with 70% isopropyl alcohol. Do not immerse in liquid, do not autoclave, and do not expose to extreme heat. The digital module does not need to be removed for routine cleaning.

Littmann CORE Digital versus Cardiology IV: What's the difference?

The Littmann CORE Digital is, essentially, a Cardiology IV with a digital module attached to the chest piece. The acoustic base is the same: both offer the cardiological auscultation quality of Littmann's top-tier line. The difference lies in the additional features of the electronic module and the investment involved.

The analog Cardiology IV has practical advantages: it doesn't rely on batteries, has a 3-year warranty (compared to 2 years for the CORE Digital), and is lighter without the module. The CORE Digital justifies the higher investment when there is a real need for amplification, such as when treating obese patients, in noisy environments, or when documenting and sharing sounds has clinical or educational value.

It is also possible to purchase the digital module (CORE Digital Attachment) separately and attach it to an existing Cardiology IV, which can be a cost-effective alternative for those who already own the analog stethoscope.

How to correctly use the Littmann CORE Digital for best sound quality

To achieve maximum sound quality with the Littmann CORE Digital, five basic precautions related to instrument positioning and maintenance must be followed.

• Index the correct side of the chest piece

  When rotating the chest piece, open the side you wish to use (adult or pediatric diaphragm) so that the other side remains closed and does not interfere with auscultation.
• Ear tips pointing forward

  The ear tips should be oriented forward, aligned with the ear canal, before inserting them. Incorrect alignment reduces sealing and compromises sound transmission.
• Choose the correct ear tip size

  The box includes small and large ear tips. Using the size that provides a comfortable seal ensures better isolation and sound quality. An inadequate seal reduces amplification efficiency.
• Keep the chest piece free of debris

  Fabric fibers from lab coats or scrubs can accumulate and obstruct the sound path. Regular cleaning with 70% alcohol and covering the bell with the removable diaphragm when not in use prevent this issue.
• Avoid prolonged contact of the tubing with skin

  PVC tubing hardens over time with exposure to human skin lipids. Using the stethoscope over a collar or lab coat, and not directly on the neck, extends the tubing's lifespan.

Frequently Asked Questions

Direct answers to the most common questions about the Littmann CORE Digital.
